SCALE Plug-and-play Drivers

SCALE Plug-and-play Drivers

详情介绍

【SCALE-1 Plug-and-play Drivers】 & 【SCALE-2 Plug-and-play Drivers】 图片














SCALE-1 Plug-and-play Drivers

※点击产品型号即可下载产品介绍。
产品型号 参数说明 下载

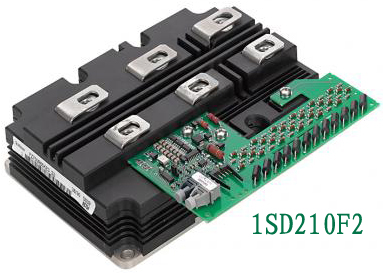

1SD210F2 Iinfineon:1SD210F2-Fx200R65KF2;4.5kV-6.5kV, 200A-1200A,1*2W,-6A/+10A
1SD210F2 Iinfineon:1SD210F2-FZ750R65KE3;4.5kV-6.5kV, 200A-1200A,1*2W,-6A/+10A
1SD210F2 Mitsubishi:1SD210F2-CM200HG-130H;4.5kV-6.5kV, 200A-1200A,1*2W,-6A/+10A
1SD210F2 Mitsubishi:1SD210F2-CM600HG-130H;4.5kV-6.5kV, 200A-1200A,1*2W,-6A/+10A

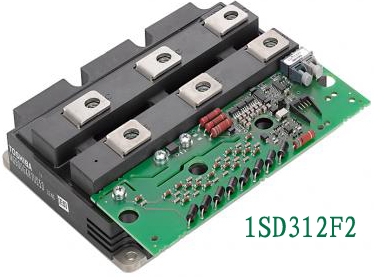

1SD312F2 1SD312F2-CM400HB-90H,4.5kV,400A-1200A,1*3W+12A
1SD312F2 1SD312F2-CM600HB-90H,4.5kV,400A-1200A,1*3W+12A
1SD312F2 1SD312F2-CM900HB-90H4.5kV,400A-1200A,1*3W+12A
1SD312F2 1SD312F2-CM900HC-90H4.5kV,400A-1200A,1*3W+12A
1SD312F2 1SD312F2-CM1200HC-90R,4.5kV,400A-1200A,1*3W+12A

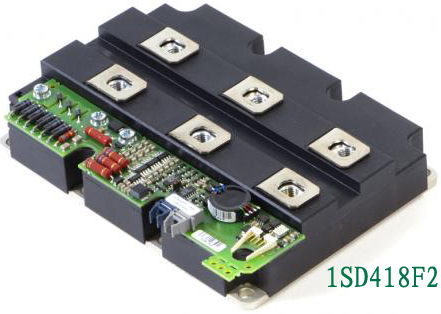

1SD418F2 Iinfineon:1SD418F2-FZ2400R17KF6;1.7 kV-3.3kV,800A- 2400A,1*4W±18A
1SD418F2 Iinfineon:1SD418F2-FZ1200R33KL2C;1.7 kV-3.3kV,800A- 2400A,1*4W±18A
1SD418F2 Mitsubishi:1SD418F2-CM1200HC-50H;1.7 kV-3.3kV,800A- 2400A,1*4W±18A
1SD418F2 Mitsubishi:1SD418F2-CM800E2C-66H;1.7 kV-3.3kV,800A- 2400A,1*4W±18A

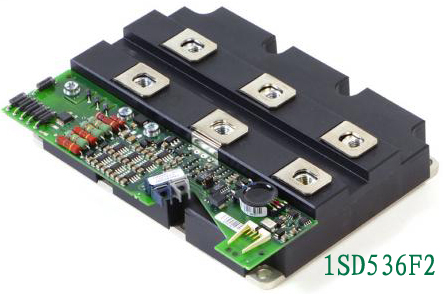

1SD536F2 Iinfineon:1SD536F2-FZ2400R12KE3;1.2kV-3.3kV, 400A-3600A,1*5W,±36A
1SD536F2 Iinfineon:1SD536F2-FZ1500R33HL3;1.2kV-3.3kV, 400A-3600A,1*5W,±36A
1SD536F2 Fuji:1SD536F2-1MBI1200U4C-120;1.2kV-3.3kV, 400A-3600A,1*5W,±36A
1SD536F2 Fuji:1SD536F2-1MBI3600U4D-170;1.2kV-3.3kV, 400A-3600A,1*5W,±36A
1SD536F2 Mitsubishi:1SD536F2-CM1800HC-34N;1.2kV-3.3kV, 400A-3600A,1*5W,±36A
1SD536F2 Mitsubishi:1SD536F2-CM800HC-66H;1.2kV-3.3kV, 400A-3600A,1*5W,±36A

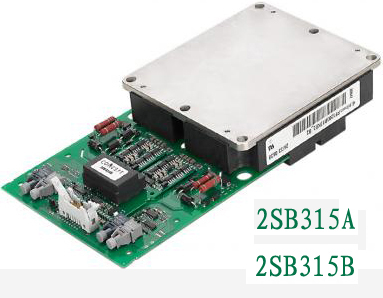

2SB315A Iinfineon:2SB315A-FF800R12KE3;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Iinfineon:2SB315A-FF1200R17KE3_B2;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Iinfineon:2SB315A-FF800R17KF6;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Fuji:2SB315A-2MBI800U4G-120;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Fuji:2SB315A-2MBI800U4G-170;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Fuji:2SB315A-2MBI800VT-170E;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Mitsubishi:2SB315A-CM1200DC-34N;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315A Mitsubishi: 2SB315A-CM800DZ-34H;1.2kV-1.7kV,800A-1200A,2*3W,±15A
2SB315B Iinfineon:2SB315B-FF800R12KE3;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Iinfineon:2SB315B-FF1200R17KE3_B2;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Iinfineon2SB315B-FF800R17KF6;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Fuji:2SB315B-2MBI800U4G-120;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Fuji:2SB315B-2MBI1200U4G-170;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Fuji:2SB315B-2MBI800U4G-170;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Mitsubishi:2SB315B-CM1200DC-34N;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A
2SB315B Mitsubishi:2SB315B-CM800DZ-34H;1.2kV - 1.7kV,800A - 1200A,2*3W,±15A

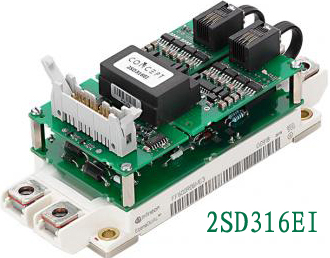

2SD316EI 1.2kV - 1.7kV,150A - 450A,2*3W,+16A/-6A

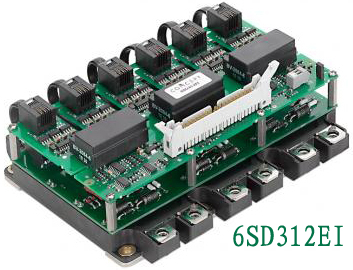

6SD312EI 1.2kV - 1.7kV,150A-450A,6*3W,+12A/-6A

SCALE-2 Plug-and-play Drivers

※点击产品型号即可下载产品介绍。
产品型号 参数说明 下载
1SP0335 各厂家通用:1SP0335x2xx-33;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 各厂家通用:1SP0335x2xx-45;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 各厂家通用:1SP0335x2xx-65;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 Iinfineon:1SP0335x2xx-FZ800R33KL2C_B5;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 Iinfineon:1SP0335D2Sx-FZ750R65KE3;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 Mitsubishi:1SP0335x2xx-CM600HG-90H;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0335 Mitsubishi:1SP0335x2xx-CM750HG-130R;3.3 kV - 6.5 kV,250A - 1200A,1*23W±35A
1SP0340 1SP0340x2xx-45,4.5 kV,1*1.3W±35A
1SP0635 各厂家通用:1SP0635x2xx-121.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 各厂家通用:1SP0635x2xx-171.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 各厂家通用:1SP0635x2xx-331.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Iinfineon:1SP0635x2xx-FZ1200R12HP41.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Iinfineon:1SP0635x2xx-FZ1500R33HL31.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Fuji:1SP0635x2xx-1MBI1600VR-170E1.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Fuji:1SP0635x2xx-1MBI1500UE-3301.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Mitsubishi:1SP0635x2xx-CM800HC-66H1.2kV-3.3kV,800A - 3600A,1*3W,±35A
1SP0635 Mitsubishi:1SP0635x2xx-CM1500HC-66R1.2kV-3.3kV,800A - 3600A,1*3W,±35A

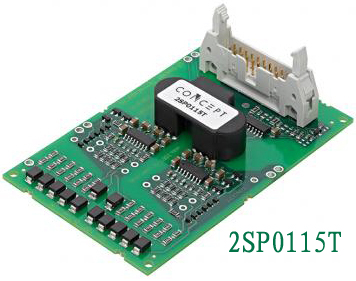

2SP0115T 各厂家通用:2SP0115T2Ax-06,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 各厂家通用:2SP0115T2Ax-12,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 各厂家通用:2SP0115T2Ax-17,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-FF450R06ME3600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-FF600R17ME4,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-2MBI225VN-120-50,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-2MBI550VN-170-50,600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-CM200DX-24S600V - 1700V,150A - 600A,2*1W+15A/-8A
2SP0115T 2SP0115T2Ax-CM450DX-24S,600V - 1700V,150A - 600A,2*1W+15A/-8A

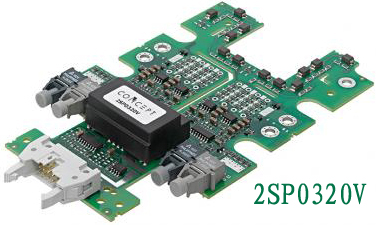

2SP0320 各家通用:2SP0320x2Ax-12,1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 各家通用:2SP0320x2Bx-12,1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 各家通用:2SP0320x2Ax-17,1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 1200V - 1700V / 450A -1400A,2*2W,±25A
2SP0320 1200V - 1700V / 450A -1400A,2*2W,±25A

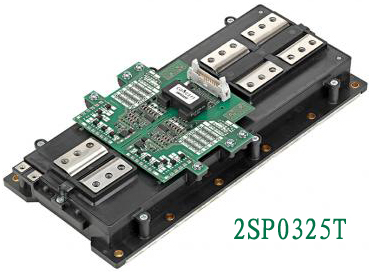

2SP0325 1800A -2500A,2*2W,±25A
2SP0325 1200V-1700V,2*2W,±25A

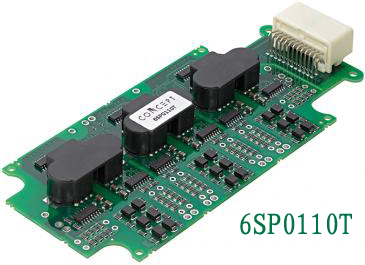

6SP0110T 650V 400A,6信道,±8A,6SP0110T2Bx-FS400R07A1E3

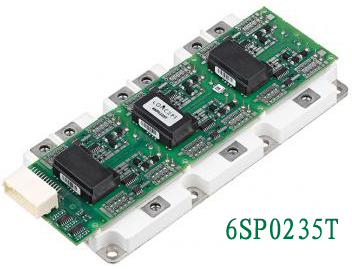

6SP0235T 650V 800A,6信道,±35A,6SP0235T2Ax-FS800R07A2E3
